ACCESSORIES
(1)	Syringes
(2)	Caps
(3)	Plungers
(4)	Adapter Tubes
(5)	Adapter Tube O-Rings
(6)	Metal Needles
(7)	Resin Needles and Nozzles
(8)	High-Precision Nozzles
(9)	Special Nozzles

Syringes

Features

Straight cylinder design
Silicone free
Original design minimizing expansion and contraction

Clear Syringe

Material: Polypropylene

Capacity	Ungraduated Model	Graduated Model	Dimensions (mm) (Overall lg x flange lg x OD)	Minimum Order
1 ml	-	PSY-1E-M	84.4 x 18 x φ6.6	50 pieces/pack
	-	PSY-1E2-M	84 x 18 x φ6.7	50 pieces/pack
3 ml	PSY-3E	-	80.1 x 24.3 x φ11.7	50 pieces/pack
5 ml	PSY-5E	PSY-5E-M	80 x 27 x φ14.9	50 pieces/pack
10 ml	PSY-10E	PSY-10E-M	105 x 32 x φ18.3	50 pieces/pack
20 ml	PSY-20F	PSY-20F-M	105 x 45 x φ26.2	50 pieces/pack
30 ml	PSY-30F	PSY-30F-M	130 x 45 x φ26.2	50 pieces/pack
50 ml	PSY-50F	PSY-50F-M	161 x 45 x φ26.2	50 pieces/pack
70 ml	PSY-70F	-	224.2 x 45 x φ26.5	50 pieces/pack
100 ml	PSY-100F	-	191 x 60 x φ35.8	20 pieces/pack

* Working pressure:
0.5MPa (5kgf/cm²) maximum at room temperature.

Features

Reduction of ultraviolet rays (UV) by 99.9%

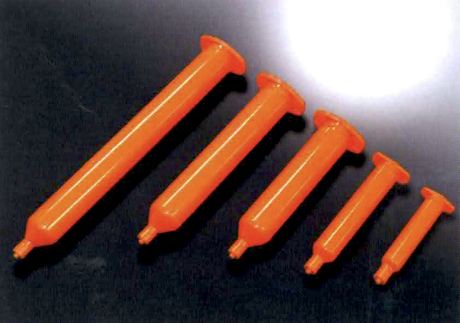

UV Syringe

Material: Polypropylene

Capacity	Ungraduated Model	Graduated Model	Dimensions (mm) (Overall lg x flange lg x OD)	Minimum Order
3 ml	PSY-3EU-OR	-	80 x 24.3 x φ11.7	50 pieces/pack
5 ml	PSY-5EU-OR	PSY-5EU-OR-M	80 x 27 x φ14.9	50 pieces/pack
10 ml	PSY-10EU-OR	PSY-10EU-OR-M	105.3 x 32 x φ18.3	50 pieces/pack
20 ml	PSY-20EU-OR	PSY-20EU-OR-M	105 x 45 x φ26.1	50 pieces/pack
30 ml	PSY-30FU-OR	PSY-30FU-OR-M	129.7 x 45 x φ26.2	50 pieces/pack
50 ml	PSY-50FU-OR	PSY-50FU-OR-M	160.8 x 45 x φ26.1	50 pieces/pack
70 ml	PSY-70FU-OR	-	224.2 x 45 x φ26.1	50 pieces/pack

* Working pressure:
0.5MPa (5kgf/cm²) maximum at room temperature.

Features

Elimination of static electricity thanks to its conductive design

Antistatic Syringe

Material: Polypropylene

Capacity	Dark Green Color	Dimensions (mm) (Overall lg x flange lg. x OD)	Minimum Order
10 ml	PSY-10E-SEP	105.5 x 32 x φ18.3	50 pieces/pack
20 ml	PSY-20E-SEP	130 x 45 x φ26.2	50 pieces/pack
50 ml	PSY-30E-SEP	161.5 x 45 x φ26.2	50 pieces/pack

* Working pressure:
0.5MPa (5kgf/cm²) maximum for PSY-10E-SEP and
0.3MPa (3kgf/cm²) maximum for PSY-30E-SEP and PSY-50E-SEP at room temperature.

Features

Best suited for operations at high temperatures and pressures

Stainless Syringe

Material: SUS303

Capacity	Model	Dimensions (mm) (Overall lg x flange lg. x OD)	Minimum Order
1 ml	SSY-1B	85 x 18 x φ6.6	1 piece
3 ml	SSY-3B	84 x 24 x φ11	1 piece
5 ml	SSY-5C	80 x 27 x φ14.7	1 piece
10 ml	SSY-10C	88 x 32 x φ18	1 piece
30 ml	SSY-30C	130 x 45 x φ25.8	1 piece
50 ml	SSY-50C	161 x 45 x φ25.8	1 piece

Return to "Products List"

Caps

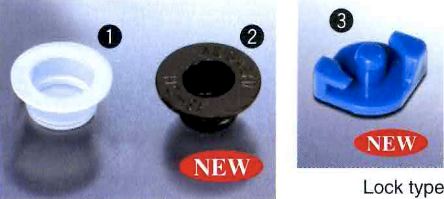

Head Cap

Material: Polypropylene

Syringe Capacity	(1)Standard Model	(2)UV Material Model	(3)Standard with Hook	Minimum Order
1 ml	HC-1E	-	HC-1E-H(*)	50 pieces/pack
3 ml	HC-3E	HC-3EU-B	-	50 pieces/pack
5 ml	HC-5E	HC-5U-B	-	50 pieces/pack
10 ml	HC-10C	HC-10U-B	-	50 pieces/pack
20-70 ml	HC-50E	HC-50EU-B	-	50 pieces/pack
100 ml	HC-100E	-	-	50 pieces/pack

*HC-1E-H is PSY-1E2-M exclusive use.

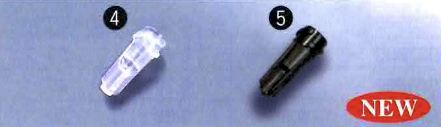

Needle Cap (Normal Type)

Material: Polypropylene

Syringe Capacity	(4)Standard Model	(5)UV Material Model	Minimum Order
Common for all sizes	NC-3E	NC-3EU-B	50 pieces/pack

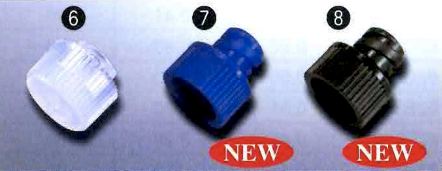

Needle Cap (Knurled Type)

Material: Polyethylene

Syringe Capacity	(6)Standard Model	(7)Standard Model	(8)UV Material Model	Minimum Order
Common for all sizes	NC-5E	NC-7E	NC-7E-B	50 pieces/pack

Return to "Products List"

Plungers

Features

For high-precision dispensing
Wonderful response even to low dispensing pressure

Float Wiper Plunger

Material: Polyethylene

Syringe Capacity	Model	Minimum Order
1 ml	FLP-1E(*)	50 pieces/pack
3 ml	FLP-3E	50 pieces/pack
5 ml	FLP-5E	50 pieces/pack
10 ml	FLP-10E	50 pieces/pack
20-70 ml	FLP-50E	50 pieces/pack

* FLP-1E is PSY-1E2-M exclusive use

Features

Significant improvement of performance of wiping fluid inside syringe
Prevention of fluid dripping

Miracle Wiper Plunger (White)

Material: Polyethylene

Syringe Capacity	Model	Minimum Order
5 ml	MLP-5E	50 pieces/pack
10 ml	MLP-10E	50 pieces/pack
20 to 70 ml	MLP-50E	50 pieces/pack

Features

Significant improvement of performance of wiping fluid inside syringe
Prevention of fluid dripping

Miracle Wiper Plunger (Red)

Material: Polyethylene

Syringe Capacity	Model	Minimum Order
5 ml	MLP-R-5E	50 pieces/pack
10 ml	MLP-R-10E	50 pieces/pack
20-70 ml	MLP-R-50E	50 pieces/pack

Features

Significant improvement of performance of wiping fluid inside syringe
Prevention of fluid dripping

Miracle Wiper Plunger (Blue)

Material: Polyethylene

Syringe Capacity	Model	Minimum Order
5 ml	MLP-B-5E	50 pieces/pack
10 ml	MLP-B-10E	50 pieces/pack
20-70 ml	MLP-B-50E	50 pieces/pack

Return to "Products List"

Adapter Tubes

Features

For high-precision dispensing
Wonderful response even to low dispensing pressure

Adapter Tube

Adapter Material: Polyethylene
Tube Material: Special elastomer resin

Syringe Capacity	Adaptor Tube	Adaptor Tube with Clamp	Length
1 ml	AT-1E(23)	-	1m
3 ml	AT-3E-H	AT-3E-H-C	1m
5 ml	AT-5E-H	AT-5E-H-C	1m
10 ml	AT-10E-H	AT-10E-H-C	1m
20-70 ml	AT-50E-H	AT-50E-H-C	1m
20-70 ml (for Σ)	AT-50E-H-SIGMA	-	1m
100 ml	AT-100E(*3)	-	1m

When ordering, spcify the length in 0.5m units.
e.g. To order a 1.5m-long tube adaptor for 10ml sryringe, you would write "AT-10E-1.5M".
The tube length cannbe specified for the Tube with Clapmer.
*2: AT-1E, PSY-1E-M is for exclusive use.
*3: AT-1E, AT-100E do not have type with stopper.

Features

For the case that the plastic connector is used on the dispenser side

Adapter Tube for Plastic Connector

Adapter Material: Polyethylene
Tube Material: Polyurethane
O-ring Material: Viton

Syringe Capacity	Φ4 type (with tube clamp) Model	Φ6 type (with tube clamp) Model	Length
3 ml	AT-3E-H-P4C	AT-3E-H-P6C	1m
5 ml	AT-5E-H-P4C	AT-5E-H-P6C	1m
10 ml	AT-10E-H-P4C	AT-10E-H-P6C	1m
20-70 ml	AT-50E-H-P4C	AT-50E-H-P6C	1m

Note: Tube length cannot be changed

Features

Elimination of static electricity thanks to its conductive design
We recommend that you use this product in conjunction with our antistatic syringe

Antistatic Adapter Tube

Adapter Material: Polyethylene
Tube Material: Polyurethane
O-ring Material: Viton

Syringe Capacity	Model	Length
10 ml	AT-10E-H-SEP	1m
30, 50 ml	AT-50E-H-SEP	1m
30, 50 ml (for Σ)	AT-50E-H-SEP-SIGMA	1m

When ordering, spcify the length in 0.5m units.
e.g. To order a 1.5m-length antistatic adapter tube for a 10ml syringe, you would write "AT-10E-SEP-1.5M".

Return to "Products List"

Adapter Tube O-Rings

Features

Spare O-ring for adapter tube
Selectable in accordance with fluid characteristics

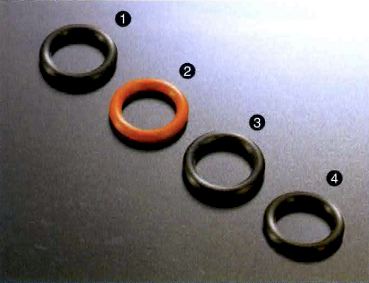

Adapter Tube O-Ring

O-ring Material: Viton/Silicone/Nitrile Rubber/Perfluoroelastomer

Syringe Capacity	(1)Viton	(2)Silicone	(3)Nitrile rubber	(4)Perluoroelastomer	Minimum Order
1 ml	ORG-1.5-V-B-1	ORG-1.5-S-R-1	ORG-1.5-N-B-1	ORG-1.5-P-B-1	20 pcs/pack
3 ml	ORG-6-V-B-1	ORG-6-S-R-1	ORG-6-N-B-1	ORG-6-P-B-1	20 pcs/pack
5 ml	ORG-9-V-B-1	ORG-9-S-R-1	ORG-9-N-B-1	ORG-9-P-B-1	20 pcs/pack
10 ml	ORG-11-V-B-1	ORG-11-S-R-1	ORG-11-N-B-1	ORG-11-P-B-1	20 pcs/pack
20-70 ml	ORG-18-V-B-1	ORG-18-S-R-1	ORG-18-N-B-1	ORG-18-P-B-1	20 pcs/pack
100 ml	ORG-24-V-B-1	ORG-24-S-R-1	ORG-24-N-B-1	ORG-24-P-B-1	20 pcs/pack

Return to "Products List"

Metal Needles

Features

Adoption of Durable SUS Needle
Needle Length: 13mm & 15mm

Metal Needle SNA series
(Metal Needles with High Durability)

Material:
Needle: SUS304
Base: Brass (Nickel-Plated)

Gauge	I.D. (mm)	O.D. (mm)	Needle Length 13mm Model	Needle Length 15mm Model	Minimum Order
12	2.27	2.77	SNA-12G-B	SNA-12G-C	60 pcs./ pack
13	1.94	2.40	SNA-13G-B	SNA-13G-C	60 pcs./ pack
14	1.64	2.10	SNA-14G-B	SNA-14G-C	60 pcs./ pack
15	1.43	1.83	SNA-15G-B	SNA-15G-C	60 pcs./ pack
16	1.25	1.65	SNA-16G-B	SNA-16G-C	60 pcs./ pack
17	1.11	1.49	SNA-17G-B	SNA-17G-C	60 pcs./ pack
18	0.92	1.28	SNA-18G-B	SNA-18G-C	60 pcs./ pack
19	0.72	1.08	SNA-19G-B	SNA-19G-C	60 pcs./ pack
20	0.61	0.91	SNA-20G-B	SNA-20G-C	60 pcs./ pack
21	0.52	0.82	SNA-21G-B	SNA-21G-C	60 pcs./ pack
22	0.42	0.72	SNA-22G-B	SNA-22G-C	60 pcs./ pack
23	0.34	0.64	SNA-23G-B	SNA-23G-C	60 pcs./ pack
24	0.31	0.57	SNA-24G-B	SNA-24G-C	60 pcs./ pack
25	0.26	0.52	SNA-25G-B	SNA-25G-C	60 pcs./ pack
26	0.25	0.46	SNA-26G-B	SNA-26G-C	60 pcs./ pack
27	0.21	0.42	SNA-27G-B	SNA-27G-C	60 pcs./ pack
28	0.18	0.36	SNA-28G-B	SNA-28G-C	60 pcs./ pack
30	0.14	0.32	SNA-30G-B	SNA-30G-C	60 pcs./ pack

Features

Disposable Type
Needle Length: 8mm & 13mm

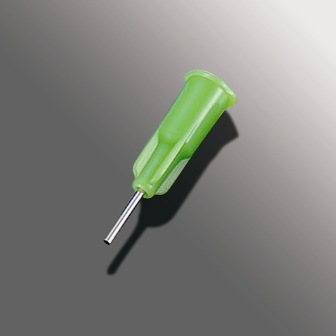

Plastic Needle

Material:
Needle: SUS304
Base: Polyacetal

Gauge	I.D. (mm)	O.D. (mm)	Color	Needle Length 8mm Model	Needle Length 13mm Model	Minimum Order
15	2.27	2.77	Brown	PN15G-A	PN15G-B	50 pcs./ pack
16	1.94	2.40	Black	PN16G-A	PN16G-B	50 pcs./ pack
17	1.64	2.10	Blue	PN17G-A	PN17G-B	50 pcs./ pack
18	1.43	1.83	Gray	PN18G-A	PN18G-B	50 pcs./ pack
19	1.25	1.65	Light Green	PN19G-A	PN19G-B	50 pcs./ pack
20	1.11	1.49	Light Pink	PN20G-A	PN20G-B	50 pcs./ pack
21	0.92	1.28	White	PN21G-A	PN21G-B	50 pcs./ pack
22	0.72	1.08	Light Blue	PN22G-A	PN22G-B	50 pcs./ pack
23	0.61	0.91	Yellow	PN23G-A	PN23G-B	50 pcs./ pack
24	0.52	0.82	Ivory	PN24G-A	PN24G-B	50 pcs./ pack
25	0.42	0.72	Pink	PN25G-A	PN25G-B	50 pcs./ pack
26	0.34	0.64	Peppermint Green	PN26G-A	PN26G-B	50 pcs./ pack
27	0.31	0.57	Brown	PN27G-A	PN27G-B	50 pcs./ pack

Features

Reliable and Sure Fitting
Secure Needle Mounting

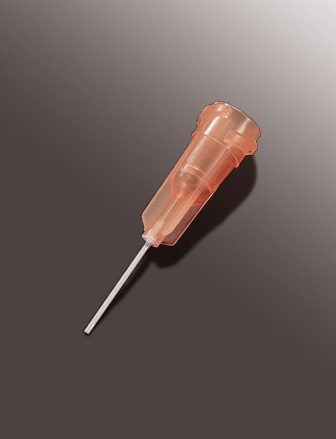

Double Thread Screwed Plastic Needle

Material:
Needle: SUS304
Base: Polypropylene

Gauge	I.D. (mm)	O.D. (mm)	Color	Needle Length 12.7mm Model	Needle Length 25.4mm Model	Needle Length 38.1mm Model	Minimum Order
14	1.52	1.83	Dark Green	DPN-14G-1	DPN-14G-2	DPN-14G-3	50 pcs./ pack
15	1.37	1.65	Brown	DPN-15G-1	DPN-15G-2	DPN-15G-3	50 pcs./ pack
18	0.84	1.27	Green	DPN-18G-1	DPN-18G-2	DPN-18G-3	50 pcs./ pack
20	0.58	0.91	Pink	DPN-20G-1	DPN-20G-2	DPN-20G-3	50 pcs./ pack
21	0.51	0.81	Purple	DPN-21G-1	DPN-21G-2	DPN-21G-3	50 pcs./ pack
22	0.41	0.71	Blue	DPN-22G-1	DPN-22G-2	DPN-22G-3	50 pcs./ pack
23	0.33	0.64	Orange	DPN-23G-1	DPN-23G-2	DPN-23G-3	50 pcs./ pack
25	0.25	0.51	Red	DPN-25G-1	DPN-25G-2	DPN-25G-3	50 pcs./ pack
27	0.20	0.41	Clear	DPN-27G-1	-	-	50 pcs./ pack
30	0.15	0.30	Light Purple	DPN-30G-1	-	-	50 pcs./ pack
22	0.10	0.23	Yellow	DPN-32G-1	-	-	50 pcs./ pack

Features

Suitable for Innter Surfaces of Workpiece

Curve Needle

Material:
Needle: SUS304
Base: Polypropylene

Gauge	I.D. (mm)	O.D. (mm)	Color	Angle: 45º Needle Length 12.7mm Model	Angle: 45º Needle Length 38.1mm Model	Angle: 90º Needle Length 12.7mm Model	Minimum Order
14	1.52	1.83	Dark Green	CPN-14G-A45	CPN-14G-B45	CPN-14G-A90	50 pcs./ pack
15	1.37	1.65	Brown	CPN-15G-A45	-	CPN-15G-A90	50 pcs./ pack
18	0.84	1.27	Green	CPN-18G-A45	CPN-18G-B45	CPN-18G-A90	50 pcs./ pack
20	0.58	0.91	Pink	CPN-20G-A45	-	CPN-20G-A90	50 pcs./ pack
21	0.51	0.81	Purple	CPN-21G-A45	CPN-21G-B45	CPN-21G-A90	50 pcs./ pack
22	0.41	0.71	Blue	CPN-22G-A45	-	CPN-22G-A90	50 pcs./ pack
23	0.33	0.64	Orange	CPN-23G-A45	-	CPN-23G-A90	50 pcs./ pack
25	0.25	0.51	Red	CPN-25G-A45	-	CPN-25G-A90	50 pcs./ pack
27	0.20	041	Clear	CPN-27G-A45	-	CPN-27G-A90	50 pcs./ pack
30	0.15	0.30	Light Purple	CPN-30G-A45	-	CPN-30G-A90	50 pcs./ pack

Return to "Products List"

Resin Needles and Nozzles

Features

Soft Material to avoid the damage to workpiece
Applicable to anaerobic material dispensing

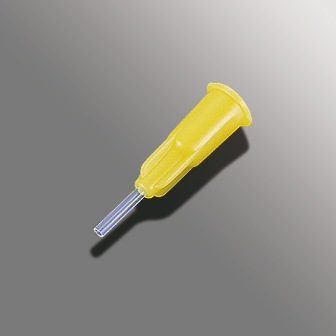

Teflon Needle

Material:
Needle: Teflon
Base: Polyacetal

Gauge	I.D. (mm)	O.D. (mm)	Color	Needle Length 8mm Model	Minimum Order
13	1.50	2.10	Ivory	TN-13G	50 pcs./ pack
14	1.35	1.95	Blue	TN-14G	50 pcs./ pack
15	1.19	1.79	Gray	TN-15G	50 pcs./ pack
16	1.07	1.67	Ivory	TN-16G	50 pcs./ pack
17	0.96	1.56	Yellow	TN-17G	50 pcs./ pack
18	0.86	1.46	Gray	TN-18G	50 pcs./ pack
19	0.68	1.18	Light Green	TN-19G	50 pcs./ pack
20	0.56	1.06	Light Pink	TN-20G	50 pcs./ pack
21	0.46	0.92	Light Blue	TN-21G	50 pcs./ pack
22	0.38	0.84	White	TN-22G	50 pcs./ pack

Features

For Dispensing anaerobic fluids with high precision
SUS Guide to prebent needlepoint unsteadiness

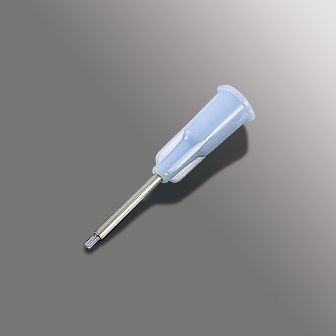

Teflon Needle with SUS Guide

Material:
Needle: Teflon
Base: Polyacetal
Guide: SUS304

Gauge	I.D. (mm)	O.D. (mm)	Color	Model	Minimum Order
16	1.07	2.42	Ivory	TN-16G-⟨⟨L-13G-∆∆L	1 pc
17	0.96	2.01	Yellow	TN-17G-⟨⟨L-14G-∆∆L	1 pc
18	0.86	2.01	Gray	TN-18G-⟨⟨L-14G-∆∆L	1 pc
19	0.68	1.82	Light Green	TN-19G-⟨⟨L-15G-∆∆L	1 pc
20	0.56	1.67	Light Pink	TN-20G-⟨⟨L-16G-∆∆L	1 pc
21	0.46	1.56	Light Blue	TN-21G-⟨⟨L-17G-∆∆L;	1 pc
22	0.38	1.22	Brown	TN-22G-⟨⟨L-18G-∆∆L	1 pc

Note 1:
- Enter the Teflon Needle Length in "⟨⟨": 4 ≤ ⟨⟨ ≤ 50 (mm)
- Enter the SUS Guide Length in "∆∆": 3 ≤ ∆∆ ≤ 49 (mm) (SUS guide should be 1mm shorter than needle)
Note 2:
- To order Teflon Needle with SUS Guide, needle length should be deterimined first.
(e.g.: "TN19G-20L-15G-19L" is 20mm-long 19G teflon needle)

Ultra-Fine Needle Type

Material:
Needle: Teflon
Base: Polypropylene
Guide: SUS304

I.D. (mm)	O.D. (mm)	Color	Needle Length 13.7mm Model	Needle Length 26.4mm Model	Minimum Order
0.3	0.5	Pink	TN-0.3-13.7-SUSG	TN-0.3-26.4-SUSG	1 pc
0.2	0.4	Purple	TN-0.2-13.7-SUSG	TN-0.2-26.4-SUSG	1 pc
0.1	0.3	Orange	TN-0.1-13.7-SUSG	TN-0.1-26.4-SUSG	1 pc

Features

Soft material to avoid damage to workpiece
Applicable to anaerobic material dispensing

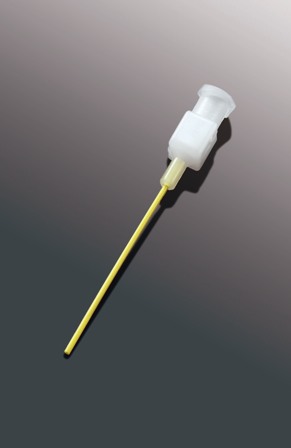

Soft Needle

Material:
Needle: Polypropylene
Base: Polypropylene

Gauge	I.D. (mm)	O.D. (mm)	Color	Model	Minimum Order
15	1.37	1.83	Dark Gray	PPN-15G	50 pcs./ pack
16	1.19	1.70	Brown	PPN-16G	50 pcs./ pack
18	0.81	1.35	Pink	PPN-18G	50 pcs./ pack
20	0.61	0.99	Yellow	PPN-20G	50 pcs./ pack
22	0.38	0.81	Brack	PPN-22G	50 pcs./ pack
25	0.33	0.74	Red	PPN-25G	50 pcs./ pack

Needle Length: 35.9mm
Overall Length: 55.6mm

Features

For high viscosity material

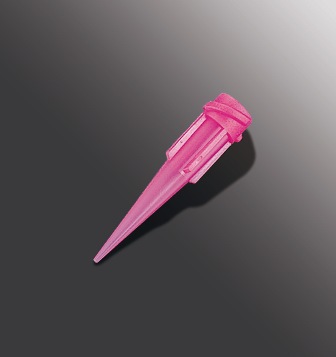

Double Thread Screwed Tapered Nozzle

Material: Polyethylene

Gauge	I.D. (mm)	Color	Model	Needle Length (mm)	Minimum Order
12	2.40	Red	TPND-12G-U	31.8	50 pcs./ pack
14	1.60	Dark green	TPND-14G-U	31.8	50 pcs./ pack
16	1.19	Black	TPND-16G-U	31.8	50 pcs./ pack
18	0.84	Light green	TPND-18G-U	31.8	50 pcs./ pack
20	0.61	Pink	TPND-20G-U	31.8	50 pcs./ pack
22	0.40	Blue	TPND-22G-U	31.8	50 pcs./ pack
25	0.25	Red	TPND-25G-U	31.8	50 pcs./ pack
27	0.20	Dark gray	TPND-27G-U	31.8	50 pcs./ pack
30	0.15	Olive	TPND-30G-U	31.8	50 pcs./ pack

Return to "Products List"

High-Precision Nozzles

Features

Suitable for ultra-small volume dispensing and ultra-fine drawing
12 types: from 20µm (min.) up to 600µmm (max.) of I.D.

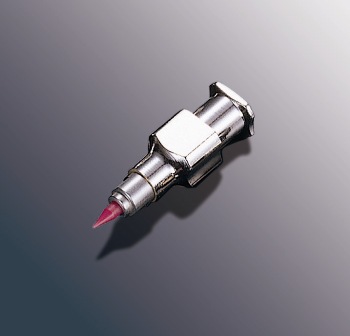

Super-Fine Nozzle

Material:
Base: Brass (Nickel-plated)

I.D. (mm)	O.D. (mm)	Luerlock Type	Double Thread ScrewType	Minimum Order
0.60	0.70	FN-0.60N	FN-0.60ND	1 pce./ pack
0.50	0.60	FN-0.50N	FN-0.50ND	1 pce./ pack
0.40	0.50	FN-0.40N	FN-0.40ND	1 pce./ pack
0.30	0.40	FN-0.30N	FN-0.30ND	1 pce./ pack
0.25	0.35	FN-0.25N	FN-0.25ND	1 pce./ pack
0.20	0.30	FN-0.20N	FN-0.20ND	1 pce./ pack
0.15	0.25	FN-0.15N	FN-0.15ND	1 pce./ pack
0.10	0.20	FN-0.10N	FN-0.10ND	1 pce./ pack
0.05	0.15	FN-0.05N	FN-0.05ND	1 pce./ pack
0.04	0.14	FN-0.04N	FN-0.04ND	1 pce./ pack
0.03	0.13	FN-0.03N	FN-0.03ND	1 pce./ pack
0.02	0.12	FN-0.02N	FN-0.02ND	1 pce./ pack

Nozzle Tip with 15-Micrometer Thickness Type

I.D. (mm)	O.D. (mm)	Luerlock Type	Double Thread ScrewType	Minimum Order
0.60	0.63	FN-0.60N-F	FN-0.60ND-F	1 pce./ pack
0.50	0.53	FN-0.50N-F	FN-0.50ND-F	1 pce./ pack
0.40	0.43	FN-0.40N-F	FN-0.40ND-F	1 pce./ pack
0.30	0.33	FN-0.30N-F	FN-0.30ND-F	1 pce./ pack
0.25	0.28	FN-0.25N-F	FN-0.25ND-F	1 pce./ pack
0.20	0.23	FN-0.20N-F	FN-0.20ND-F	1 pce./ pack
0.15	0.18	FN-0.15N-F	FN-0.15ND-F	1 pce./ pack
0.10	0.13	FN-0.10N-F	FN-0.10ND-F	1 pce./ pack
0.05	0.08	FN-0.05N-F	FN-0.05ND-F	1 pce./ pack
0.04	0.07	FN-0.04N-F	FN-0.04ND-F	1 pce./ pack
0.03	0.06	FN-0.03N-F	FN-0.03ND-F	1 pce./ pack
0.02	0.05	FN-0.02N-F	FN-0.02ND-F	1 pce./ pack

Features

Integral Structure
Tapered Shape
Ultra-Thinned Nozzle Tip

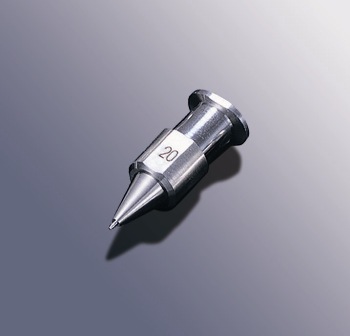

Precision Solid Nozzle

Material: SUS303

I.D. (mm)	Model	Minimum Order
0.50	SHN-0.5N	1 pce./ pack
0.45	SHN-0.45N	1 pce./ pack
0.40	SHN-0.4N	1 pce./ pack
0.35	SHN-0.35N	1 pce./ pack
0.30	SHN-0.3N	1 pce./ pack
0.25	SHN-0.25N	1 pce./ pack
0.20	SHN-0.2N	1 pce./ pack
0.15	SHN-0.15N	1 pce./ pack
0.10	SHN-0.1N	1 pce./ pack

Features

High-Precision Dispensing of Material with Fillers

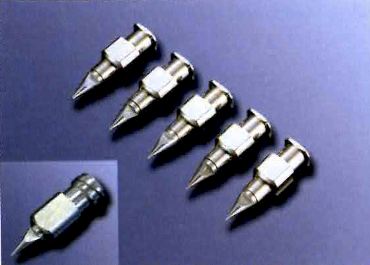

Precision Nozzle

Material:
Needle: SUS303
Base: Brass (Nickel-Plated)

I.D. (mm)	O.D. (mm)	Luerlock Type	Double Thread Screw Type	Minimum Order
0.60	0.80	HN-0.6N	HN-0.6ND	1 pce./ pack
0.50	0.70	HN-0.5N	HN-0.5ND	1 pce./ pack
0.40	0.6	HN-0.4N	HN-0.4ND	1 pce./ pack
0.30	0.50	HN-0.3N	HN-0.3ND	1 pce./ pack
0.25	0.45	HN-0.25N	HN-0.25ND	1 pce./ pack
0.20	0.40	HN-0.2N	HN-0.2ND	1 pce./ pack
0.15	0.25	HN-0.15N	HN-0.15ND	1 pce./ pack
0.10	0.20	HN-0.1N	HN-0.1ND	1 pce./ pack

Features

For Small Volume Dispensing
Tapered needle tip
Needle base with double thread screwed design

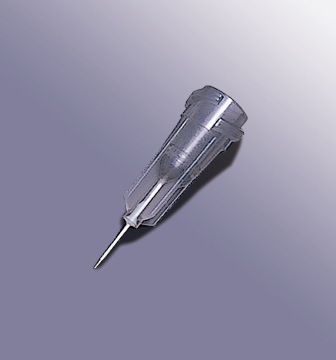

Sharp Needle

Material:
Needle: SUS304
Base: Polypropylene

I.D. (mm)	Tip O.D. (mm)	Color	Overall Length (A) (mm)	Needle Length (B) (mm)	Model	Minimum Order
0.84	1.00	Green	30.3	12.7	SPN-0.84-12.7L	50 pcs./ pack
0.58	0.74	Pink	55.7	38.1	SPN-0.58-38.1L	50 pcs./ pack
0.41	0.52	Blue	55.7	38.1	SPN-0.41-38.1L	50 pcs./ pack
0.33	0.44	Orange	30.3	12.7	SPN-0.33-12.7L	50 pcs./ pack
0.25	0.34	Red	30.3	12.7	SPN-0.25-12.7L	50 pcs./ pack
0.17	0.26	Peppermint Green	27.1	9.5	SPN-0.17-9.5L	50 pcs./ pack
0.12	0.19	Gray	24.0	6.5	SPN-0.12-6.5L	50 pcs./ pack

Return to "Products List"

Special Nozzles

Features

For 2-point simultaneous dispensing

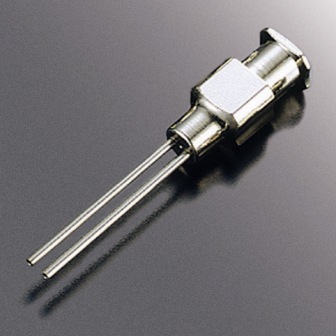

Twin Needle

Material:
Needle: SUS304
Base: Brass (Nickel-Plated)

Gauge	I.D. (mm)	O.D. (mm)	Needle Length: 20mm Needle Pitch: 2mm Model	Minimum Order
16	1.19	1.67	DN-16G	1 pce./ pack
17	1.04	1.56	DN-17G	1 pce./ pack
18	0.86	1.22	DN-18G	1 pce./ pack
19	0.68	1.00	DN-19G	1 pce./ pack
20	0.58	0.91	DN-20G	1 pce./ pack
21	0.49	0.83	DN-21G	1 pce./ pack
22	0.39	0.72	DN-22G	1 pce./ pack
23	0.32	0.63	DN-23G	1 pce./ pack
24	0.29	0.57	DN-24G	1 pce./ pack
25	0.26	0.50	DN-25G	1 pce./ pack
26	0.24	0.46	DN-26G	1 pce./ pack
27	0.20	0.41	DN-27G	1 pce./ pack
28	0.15	0.35	DN-28G	1 pce./ pack

Features

For 3-point simultaneous dispensing

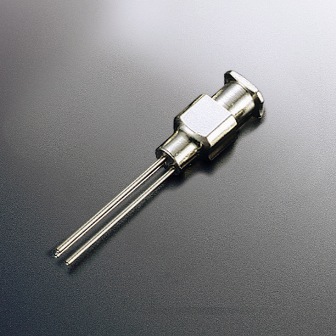

3-pin Needle

Material:
Needle: SUS304
Base: Brass (Nickel-Plated)

Gauge	I.D. (mm)	O.D. (mm)	Needle Length: 20mm Needle Pitch: 2mm Model	Minimum Order
18	0.86	1.22	DN-18G-3P	1 pce./ pack
19	0.68	1.00	DN-19G-3P	1 pce./ pack
20	0.58	0.91	DN-20G-3P	1 pce./ pack
21	0.49	0.83	DN-21G-3P	1 pce./ pack
22	0.39	0.72	DN-22G-3P	1 pce./ pack
23	0.32	0.63	DN-23G-3P	1 pce./ pack
24	0.29	0.57	DN-24G-3P	1 pce./ pack
25	0.26	0.50	DN-25G-3P	1 pce./ pack
26	0.24	0.46	DN-26G-3P	1 pce./ pack
27	0.20	0.41	DN-27G-3P	1 pce./ pack
28	0.15	0.35	DN-28G-3P	1 pce./ pack

Features

For 4-point simultaneous dispensing

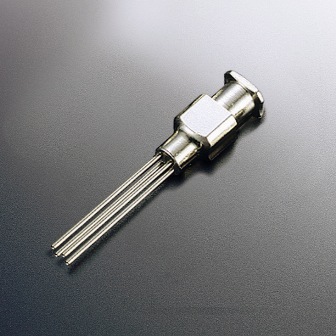

4-pin Needle

Material:
Needle: SUS304
Base: Brass (Nickel-Plated)

Gauge	I.D. (mm)	O.D. (mm)	Needle Length: 20mm Needle Pitch: 2mm Model	Minimum Order
21	0.49	0.83	DN-21G-4P	1 pce./ pack
22	0.39	0.72	DN-22G-4P	1 pce./ pack
23	0.32	0.63	DN-23G-4P	1 pce./ pack
24	0.29	0.57	DN-24G-4P	1 pce./ pack
25	0.26	0.50	DN-25G-4P	1 pce./ pack
26	0.24	0.46	DN-26G-4P	1 pce./ pack
27	0.20	0.41	DN-27G-4P	1 pce./ pack
28	0.15	0.35	DN-28G-4P	1 pce./ pack

Features

For Multipoint simultaneous dispensing
Applicable to various dispensing patterns

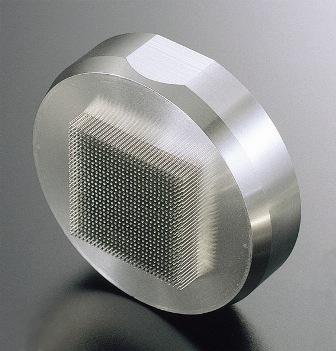

Multi Needle

Material:
Needle: SUS304
Base: SUS303

Needle Base Size (A:Width, B:Height)

Model	Dimension A (mm)	Dimension B (mm)
MN-10	10	15
MN-13	13	19
MN-15	15	22
MN-17	17	22
MN-19	19	22
MN-21	21	22
MN-23	23	25
MN-25	25	25
MN-27	27	25

Needle Inner and Outer Diameters

Gauge	Dimension A (mm)	Dimension B (mm)
12	2.30	2.99
13	1.80	2.42
14	1.58	2.01
15	1.37	1.82
16	1.19	1.67
17	1.04	1.56
18	0.86	1.22
19	0.68	1.00
20	0.58	0.91
21	0.49	0.83
22	0.39	0.72
23	0.32	0.63
24	0.29	0.57
25	0.26	0.50
26	0.24	0.46
27	0.20	0.41
28	0.15	0.35

Note 1: When ordering nozzles, please specify the needle type, arrangement, gauge and length.
Note 2: Please contact to sales[at]musashius.com, when ordering a nozzle not listed above.

Return to "Products List"
